Pelletizer WL Antarctica S

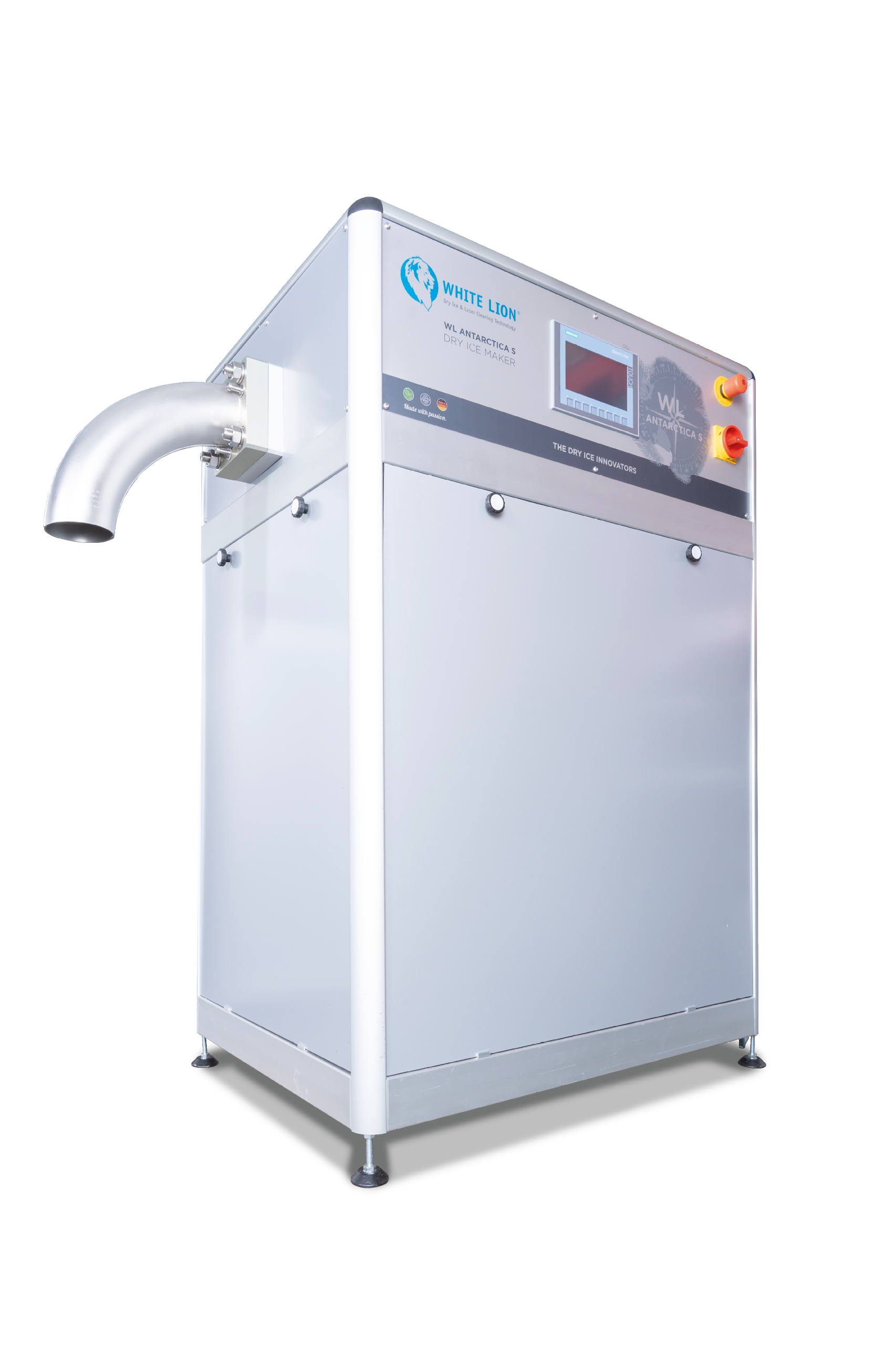

The “White Lion Antarctica S” machine is a press for the production of dry ice pellets. The pellet size can be varied between 3, 10 and 16 mm by changing the die.

Dry ice machine

WL Antarctica S

The production capacity is approx. 120 kg/h with pellets of 3 mm in size.

Electrical data
  • Power supply: 400 V 3 ph,
    Plug 16 A CEE
  • Frequency: 50 Hz
  • Control voltage: 24 V DC
  • Power consumption: 5 kW
  • Recommended temperature range:
    15 °C to 35 °C
  • Recommended relative humidity:
    40% – 80%
Mechanical data
  • Total weight: approx. 300 kg (without packaging)
  • Dimensions (L x D x H):
    approx. 1500 × 950 × 750 mm
  • Raw material:CO2 – liquid
  • Inlet pressure: 15 bar(g) – 21 bar(g)
  • Capacity: approx. 130 kg/h with 3 mm pellets
  • Hydraulic oil: approx. 44 l

When does dry ice production make sense?

There are good reasons to be flexible. Whenever large quantities of dry ice are required at short notice or on a regular basis, it makes sense to have your own dry ice production facility.

With your own dry ice machine, you can ensure the supply of high-quality dry ice – at the right time, in the right place and in the desired quantity.

Sublimation losses inevitably occur during the transportation of dry ice. During storage and transportation, the dry ice not only loses weight, but also increasingly loses quality due to condensation of ambient moisture and icing of the surface. In contrast, liquid CO2 can be stored in a tank for on-site production without any losses.

In certain dry ice applications, such as dry ice cleaning, the quality of the dry ice determines the result of the application to a considerable extent!

Wiring diagram
Connection diagram for Pelletizer White Lion Antarctica

The Break Eaven Point

If you want to produce dry ice, you need to meet a number of technical requirements. We would like to briefly summarize the most important points below so that you can get a technical and economic overview.

You can carry out a profitability calculation using the Excel spreadsheet we have provided. We have provided an example with realistic figures based on the German market. Please enter your individual key figures here and create your own personal calculation. We will be happy to send you the calculation table on request.

You are also welcome to arrange a callback with us!
